Bertec成立于1987年，持续致力于生物力学、机电一体化、沉浸式视觉现实、平衡、移动性和视觉运动处理等领域最具雄心的工程项目，为从业者、研究人员和性能专家带来行业领先的解决方案。Bertec秉持对精确、准确性和性能的坚定承诺，设计并打造尖端解决方案，赋能研究人员、临床医生和运动员揭开人体运动的奥秘。
与Bertec一起探索运动科学的未来
Bertec 提供一系列精密工程产品，包括最先进的跑步机、力板和放大器。这些工具不仅捕捉了动作的细微差别，还为步态分析、平衡评估和运动表现提供了宝贵的见解。凭借无与伦比的准确性和可靠性，Bertec的技术塑造着临床研究、运动科学和康复的未来。
迈向未来，Bertec的Immersive Labs让科技与人体运动无缝融合。沉浸式技术创造了栩栩如生的虚拟环境，使专业人士能够在真实场景中研究动作，进一步推动人类表现研究的边界。从临床环境到顶级体育训练设施，Bertec的沉浸式实验室彻底革新了学习与分析。

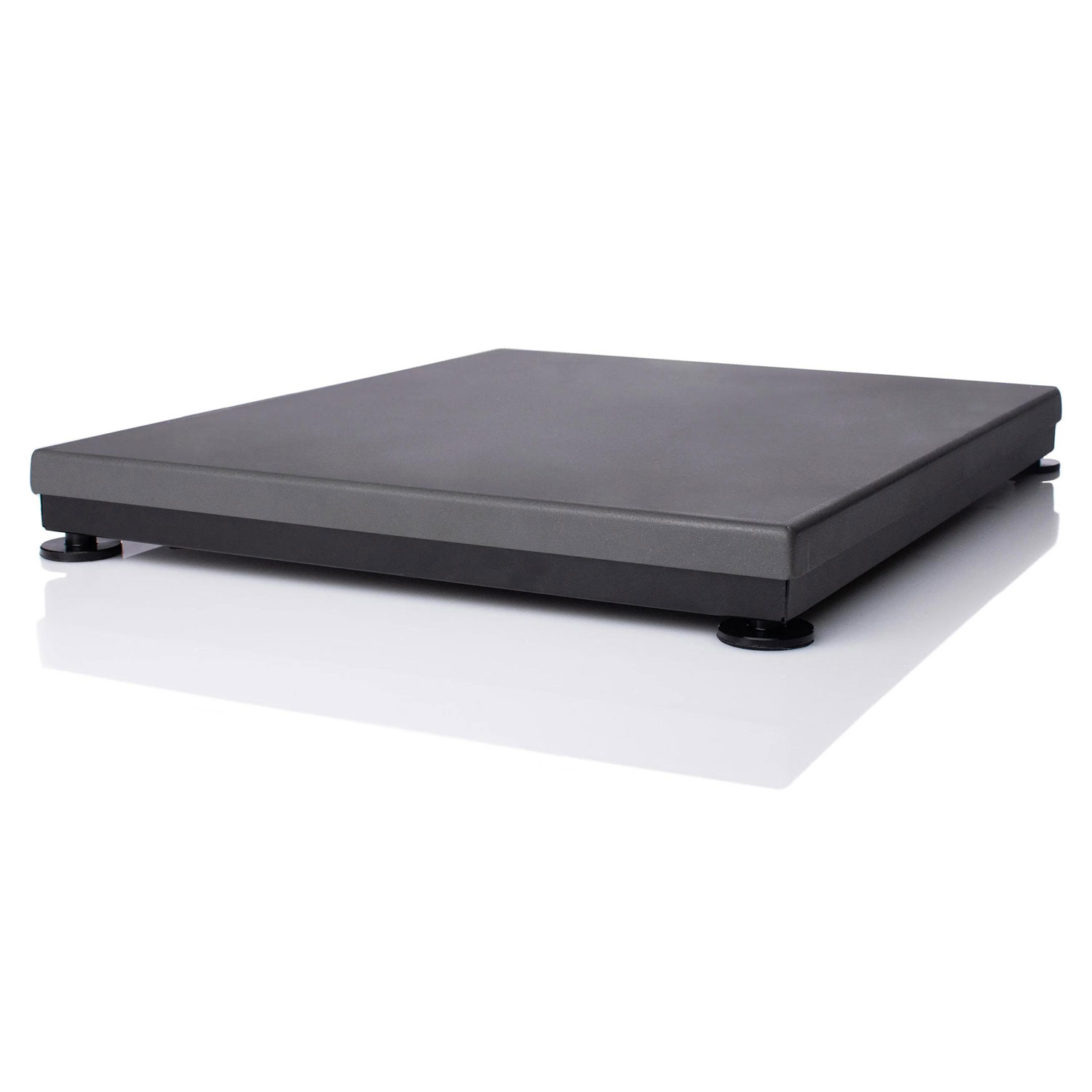

Force Plates测力台
Bertec force plates are designed for gait, balance, and performance analyses. Our patented strain gauge technology, innovative transducer designs, and quality manufacturing help you capture the highly accurate data needed for your research.
Bertec测力台专为步态、平衡和性能分析而设计。我们专利的应变片技术、创新的传感器设计和高质量的制造工艺，助您获取研究所需的高精度数据。
Wide range of applications
广泛的应用
Variety of sizes and load ranges
多种尺寸和读档范围
Superior electronics卓越的电子性能
Negligible cross talk, drift and signal interference
极低的串扰、漂移和信号干扰
Ease of data collection
数据采集便捷
Strongest industry warranty
业内最强的保修政策
Superior technology卓越技术
Bertec force plates lead the industry in center of pressure and force measurement accuracy with negligible crosstalk, drift, and signal interference. Analog signals sampled internally at 1000Hz are immediately processed by our custom electronics into digital data impervious to degradation.
Bertec测力台在压力中心和力测量精度方面处于行业领先地位，其串扰、漂移和信号干扰可忽略不计。内部以1000Hz采样的模拟信号会立即通过我们的定制电子设备处理成数字数据，从而避免数据退化。

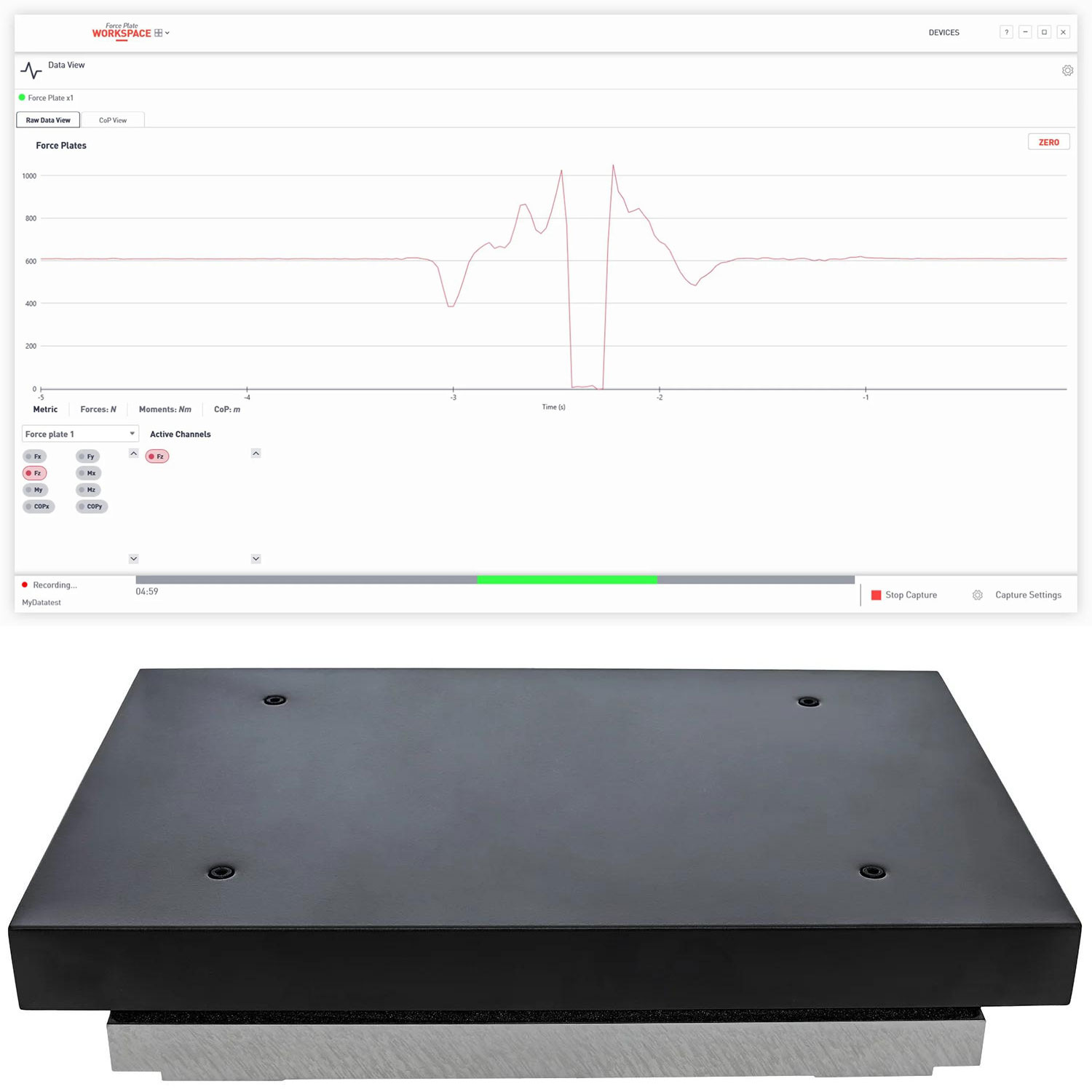

Enhanced data collection powered by Kinamoto™
由 Kinamoto™ 驱动的增强型数据收集
Visualize and capture live force and CoP data all in a single software with easy plug-and-play design. Seamlessly connect and synchronize force plates for simple coordination and precision with built-in auxiliary triggers.
在单一软件中可视化并捕捉实时力和中心压力数据，设计简单，即插即用。无缝连接并同步力板，内置辅助扳机，实现简单协调与精准测量。

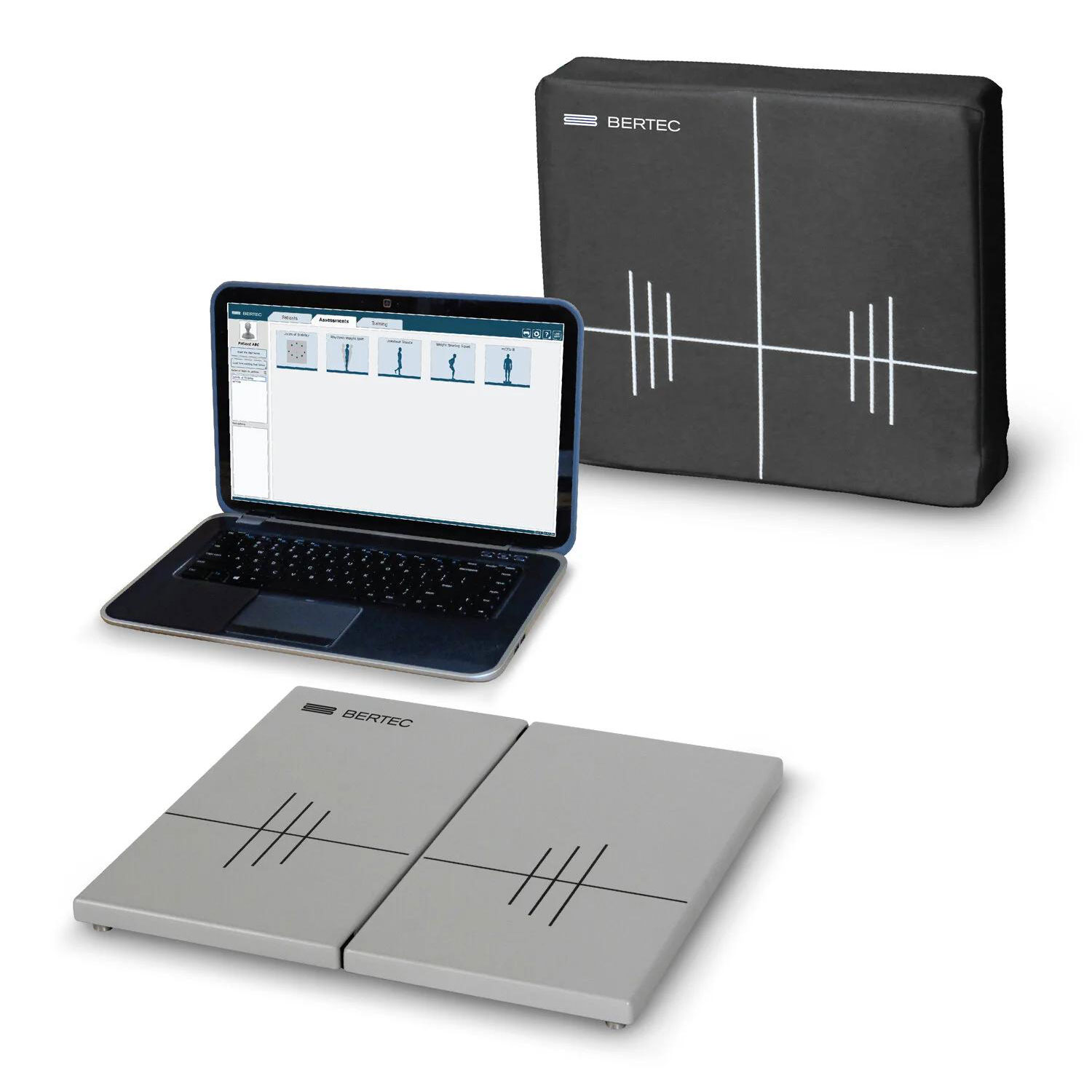

Portable solutions便携式解决方案
Your lab on the go. Bertec’s portable force plates allow for accurate and reliable data collection in more natural environments.
您的移动实验室。Bertec的便携式测力台可在更自然的环境中实现准确可靠的数据采集。
Strongest industry warranty
业内最强的保修政策
Representing a legacy of excellence in biomechanics for over 30 years, Bertec is proud to offer the strongest 7-year warranty on fixed force plates.
Bertec 三十余年来一直代表着生物力学领域的卓越传承，我们自豪地为固定测力台提供业内最强劲的七年质保服务。

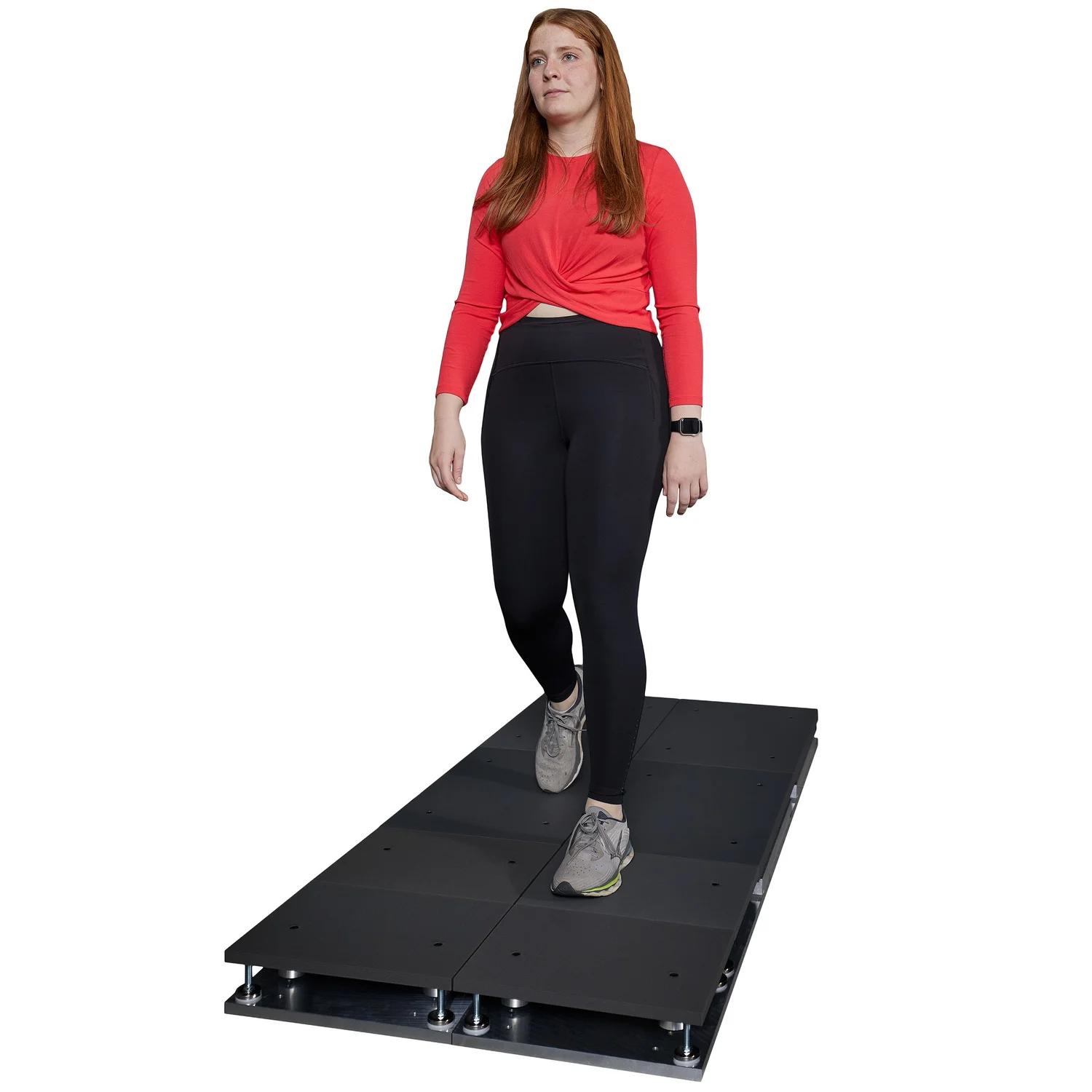

Fixed Walkway Solution固定步道解决方案
The Bertec Fixed Walkway allows researchers to mount Bertec’s 40x60 cm or 60x90 cm fixed force plates in a customizable in-series configuration for various biomechanics applications. Independently reconfigure your force plates depending on your experimental needs while maintaining data quality.
Bertec固定步道允许研究人员以可定制的串联配置安装Bertec的40x60厘米或60x90厘米固定测力台，适用于各种生物力学应用。根据实验需求独立重新配置测力台，同时保持数据质量。
Dual Plate Solution双测力台解决方案
The Dual Bracket allows researchers to secure two high-capacity portable force plates for various applications. This configuration secures two same-sized force plates in place during high-impact dynamic movements.
双支架允许研究人员固定两个高容量便携式测力台，适用于各种应用。此配置在高冲击动态运动期间将两个相同尺寸的测力台固定到位。
Only available for Bertec 5060-06 portable force plates.
仅适用于 Bertec 5060-06 便携式测力台。

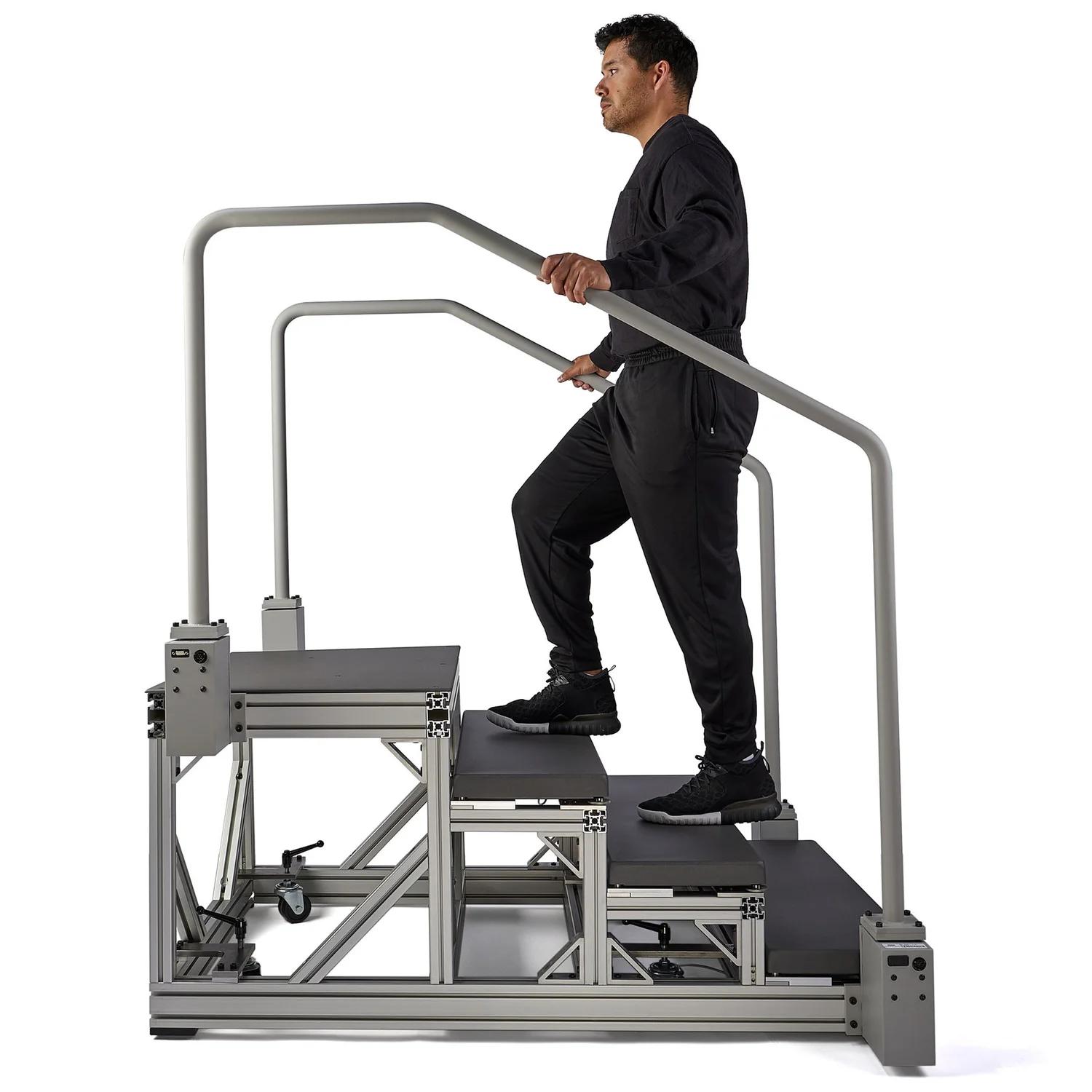

Instrumented Stairs仪器化楼梯
The Bertec Instrumented Stairs offer precise force measurement capabilities for stair ascent and descent analysis. The steps are equipped with portable force plates to capture reliable and high-quality force and CoP data for consistent results in every study.
Bertec智能楼梯为上下楼梯分析提供了精确的力测量功能。台阶上配备了便携式测力板，能够捕捉可靠且高质量的力和压力中心（CoP）数据，确保每次研究结果的一致性。
Only available for Bertec 3192-06 portable force plates.
仅适用于 Bertec 3192-06 便携式测力台。
| model型号 | width cm (in)宽度 厘米 (英寸) | length cm (in)长度 cm (英寸) | height cm (in)身高 cm (英寸) | weight kg (lb)体重 kg (磅) | load capacity 1000 lb (5000 N)
读档容量 1000 磅 (5000 牛) | load capacity 2000 lb (10000 N)
读档容量 2000 磅 (10000 牛) | load capacity 4000 lb (20000 N)
读档容量 4000 磅 (20000 牛) | load capacity 5000 lb (22500 N)
读档容量5000磅（22500牛） | spec sheet规格表 |
Portable (USB or standard output directly from force plate)
便携式（USB或力板直接标准输出） |
| 4060-05 | 40 (15.75) | 60 (23.62) | 5 (1.97) | 8 (18)8（18） | ✔ |
|
|
| download下载 |
| 10 (22)10（22） |
| ✔ |
|
|
| 5060-06 | 50 (19.69) | 60 (23.62) | 6 (2.35) | 13 (28) |
| ✔ |
|
| download下载 |
| 49.5 (19.49) |
|
|
| ✔ | download下载 |
| 6090-06 | 60 (23.62) | 90 (35.43) | 6 (2.35) | 23 (50) |
| ✔ |
|
| download下载 |
| Fixed固定式 |
| 4060-07 | 40 (15.75) | 60 (23.62) | 7.5 (2.95) | 38 (84) | ✔ | ✔ | ✔ |
| download下载 |
| 4060-08 | 40 (15.75) | 60 (23.62) | 8.3 (3.25) | 38 (84) | ✔ | ✔ | ✔ |
| download下载 |
| 4060-10 | 40 (15.75) | 60 (23.62) | 10.0 (3.94) | 30 (66) | ✔ | ✔ | ✔ |
| download下载 |
| 4060-15 | 40 (15.75) | 60 (23.62) | 15.0 (5.90) | 21 (46) | ✔ | ✔ | ✔ |
| download下载 |
| 4550-08 | 46.4 (18.25) | 50.8 (20.00) | 8.3 (3.25) | 40 (87) | ✔ | ✔ | ✔ |
| download下载 |
| 6012-15 | 60 (23.62) | 120 (47.25) | 15.0 (5.90) | 62 (137) | ✔ | ✔ | ✔ |
| download下载 |
| 6090-15 | 60 (23.62) | 90 (35.43) | 15.0 (5.90) | 45 (99) | ✔ | ✔ | ✔ |
| download下载 |
| 9090-15 | 90 (35.43) | 90 (35.43) | 15.0 (5.90) | 65 (143) | ✔ | ✔ | ✔ |
| download下载 |
Specifications同人小说
Available in a variety of sizes and load ranges
提供多种尺寸和载荷范围
Utilize with any motion capture system including camera-based systems using passive or active markers
可与任何动作捕捉系统配合使用，包括使用被动或主动标记的基于摄像头的系统
Simultaneously measures three force components and three moment components about the x, y, and z axes for a total of six outputs which are used to compute the Center of Pressure (CoP)
同时测量围绕x、y和z轴的三个力分量和三个力矩分量，共六个输出，用于计算压力中心（CoP）
Also available - specialized force plates, balance plates, and jump plates, measuring only the vertical force and two moments which are used to compute the Center of Pressure (CoP)
另有提供——专用测力板、平衡板和跳跃板，仅测量垂直力和两个力矩，用于计算压力中心（CoP）
Force plate signal is fed into your choice of amplifier - digital, analog or dual digital/analog output
测力台信号可接入您选择的放大器——数字输出、模拟输出或数字/模拟双输出型号
Digital signal output from the portable force plate can be directly plugged into a standard USB port
便携式测力台的数字信号输出可直接插入标准USB接口
Digital acquisition software enables the user to collect data quickly
数字采集软件使用户能够快速收集数据
SDK is available for download to integrate the force plate with custom software
SDK可供下载，用于将测力台集成到自定义软件中
Custom electronics guarantee negligible cross talk, drift and signal interference from external sources
定制电子元件确保来自外部源的串扰、漂移和信号干扰可忽略不计
Mounted and portable force plates available
提供固定式和便携式测力台选项
Portable force plates allow data collection in more natural environments
便携式测力台可在更自然环境中采集数据
Strongest industry warranty
业内最强的保修政策
