Bertec 全功能测力跑台 测力跑步机 测力跑台 测力扶手 Instrumented Treadmill FIT Gen 5

Instrumented Treadmill测力跑步机

The Bertec Fully Instrumented Treadmill allows researchers to reduce gait laboratory space requirements and remove the limitations inherent in a traditional gait walkway. The unique design results in superior dynamic characteristics and a high natural frequency making it the most trusted research-grade fully instrumented treadmill available on the market.

Bertec 全测力跑步机使研究人员能够减少步态实验室的空间需求，并消除传统步态通道固有的局限性。其独特的设计带来了卓越的动态特性和高固有频率，使其成为市场上最受信赖的研究级全测力跑步机。

Independent motion control of each belt

每条跑带独立运动控制

Industry-leading accuracy

行业领先的精度

Ease of treadmill control

跑步机控制便捷性

Variety of applications and ease of integration

应用多样化与易于集成

Unique design features独特设计特点

Fully redesigned software solution

全新设计的软件解决方案

Create custom experimental protocols

创建自定义实验方案

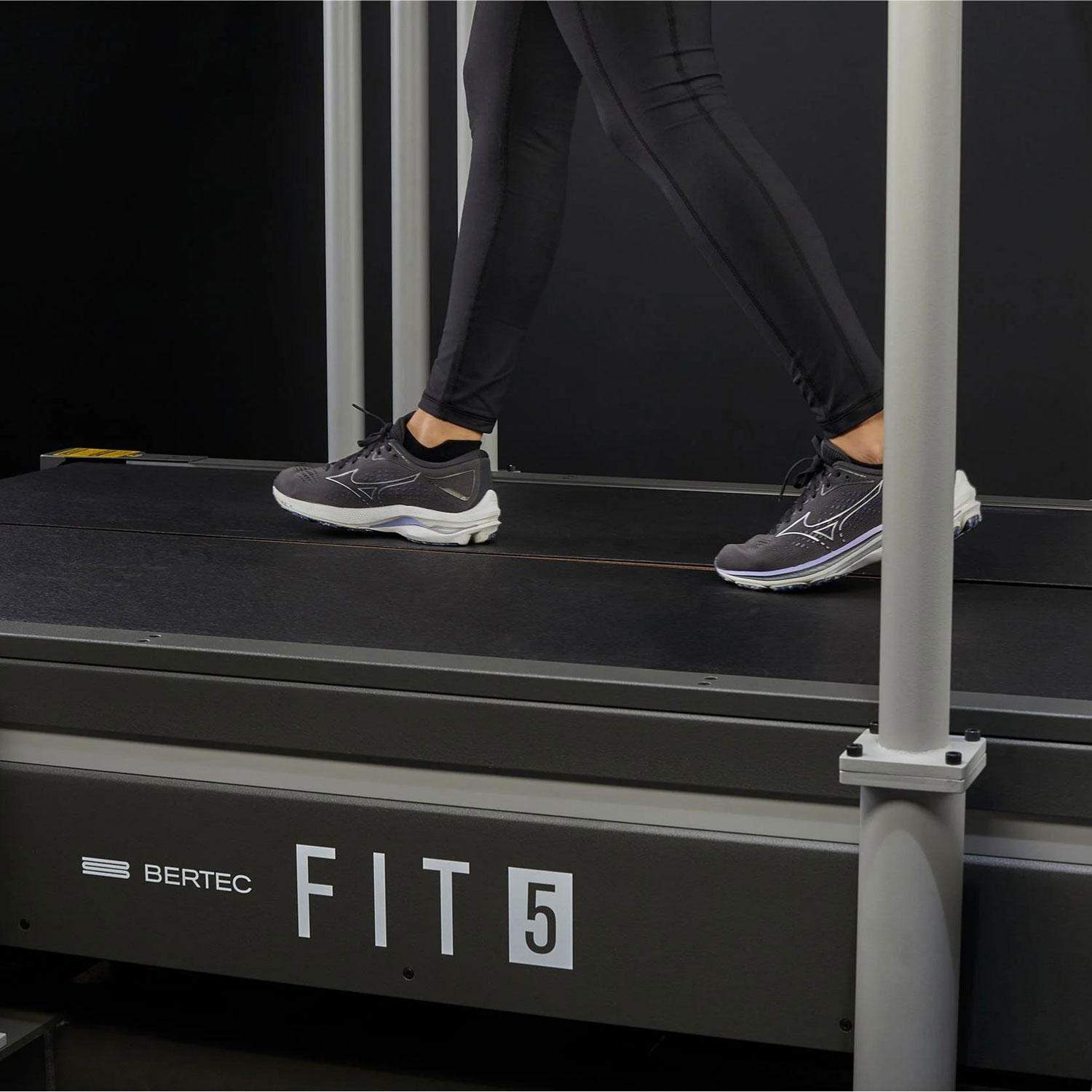

Industry-leading accuracy

行业领先的精度

Bertec treadmills offer high quality data at precision-controlled speeds and accelerations. The system’s high natural frequency, low vibration drive system, and Bertec’s custom electronics enable independent and highly accurate 6-component load measurements output at 1000 Hz from each belt.

Bertec 跑台在精密控制的速度和加速度下提供高质量的数据。该系统的高固有频率、低振动驱动系统以及 Bertec 的定制电子设备，实现了每条跑带独立输出的、高度精确的六分量读档测量，采样频率为 1000 Hz。

Unique design独特设计

Meticulously designed, the Bertec Fully Instrumented Treadmill is a split belt system with each side controlled independently (or synced) in both forward and reverse directions. With optional instrumented handrails and incline systems, you can expand your studies to collect more scenarios including upper and lower body forces up to 15 degrees.

Bertec 全功能测力跑台经过精心设计，采用分体式跑带系统，两侧可独立（或同步）控制前进和后退方向。搭配可选的测力扶手和坡度系统，您可扩展研究范围，收集更多场景数据，包括上下肢力数据，坡度可达15度。

Precision controls精准控制

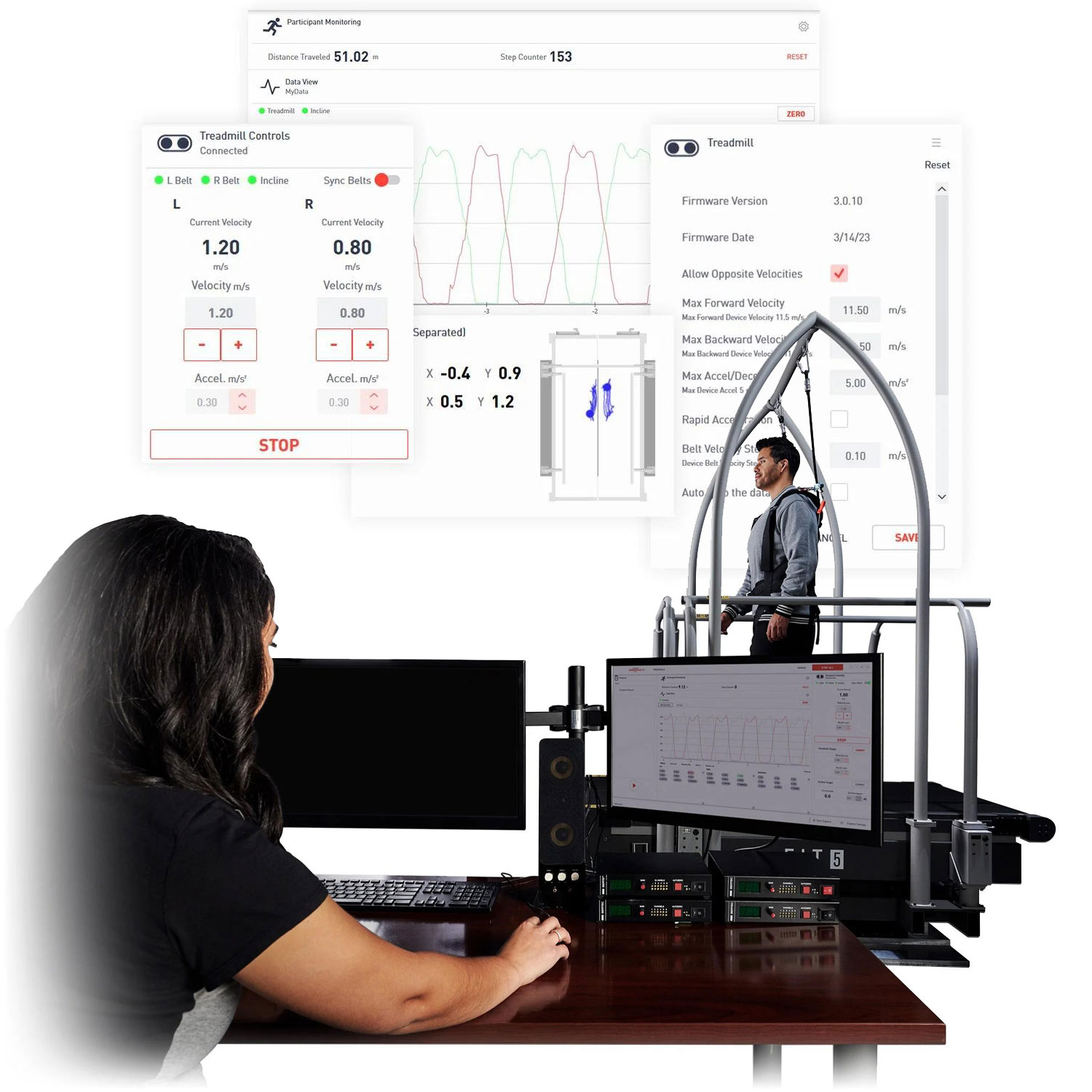

Full-featured software not only enables precise velocity and acceleration control of each treadmill belt, individually or simultaneously, but also provides a space for triggered data capture with your lab equipment. The live view of force and center of pressure data, and step counting with customizable force thresholds allows researchers to visualize and verify outputs.

功能全面的软件不仅能够单独或同时对每条跑步机履带进行精确的速度和加速度控制，还为与实验室装备配合进行触发式数据采集提供了空间。力和压力中心数据的实时视图，以及具有可自定义力阈值的步数计数功能，使研究人员能够可视化并验证输出结果。

Protocol builder协议构建器

Create custom treadmill protocols to operate your device with unique playlist-style functionality. Offers repeatability for experiments by saving protocols and highlighting your favorite playlists. Sync your data capture with your custom protocol for one-click operation during experiments.

创建自定义跑步机协议，以独特的播放列表式功能操作您的设备。通过保存协议和突出显示您喜爱的播放列表，为实验提供可重复性。在实验期间，将您的数据采集与自定义协议同步，实现一键操作。

Easy integration易于集成

Works with all major motion capture systems. Hardware sync allows your treadmill to integrate seamlessly into your lab. Triggered data capture enables external sources to start and stop your data collection. Remote control enables advanced programmatic control of your treadmill via a Python API.

兼容所有主流动作捕捉系统。硬件同步功能可使您的跑步机无缝融入实验室环境。扳机式数据采集功能支持外部设备控制数据收集的启停。远程控制功能通过Python API实现对跑步机的高级编程控制。

Configuration配置

Two independent force measuring belts, m (in): 1.75 x 0.5 (approx. 70 x 20) each

两条独立的力测量皮带，m (英寸)：1.75 x 0.5 (约 70 x 20) 每条

Max Load Range: N (lb) - Fx, Fy: 2,500 (550) Fz: 5,000 (1,100)

最大量程：N (磅) - Fx, Fy: 2,500 (550) Fz: 5,000 (1,100)

Speed Range: m/s (mi/h): 0-11.5 (0-25)

速度范围：m/s (英里/小时)：0-11.5 (0-25)

Acceleration: m/s2 (ft/ s2): 0-25 (0-82)

加速度：m/s2 (英尺/秒2)：0-25 (0-82)

Total Walking Surface: m (in) 1.75 x 1 (approx. 70 x 40)

总行走面积：米（英寸）1.75 x 1（约70 x 40）

Options选项

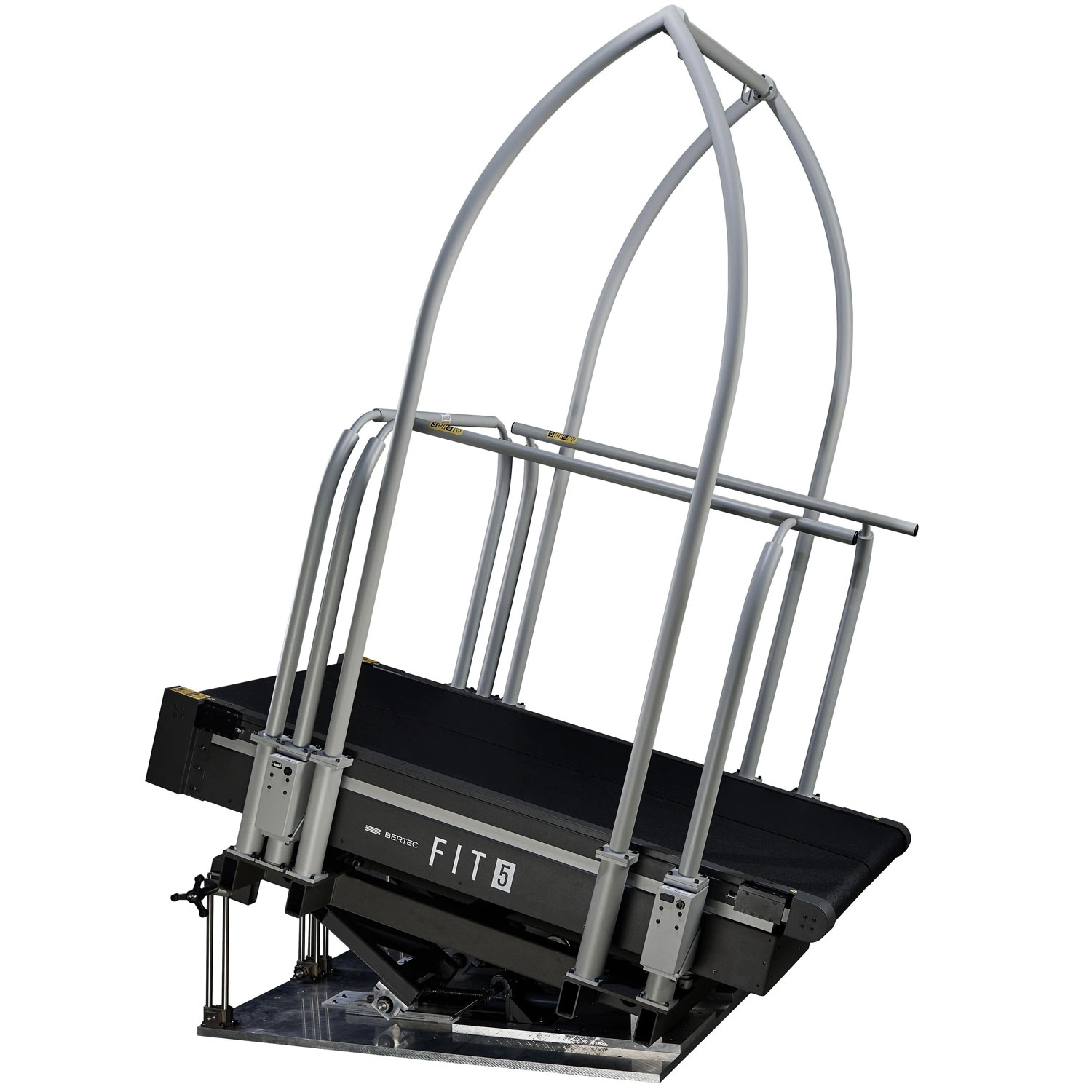

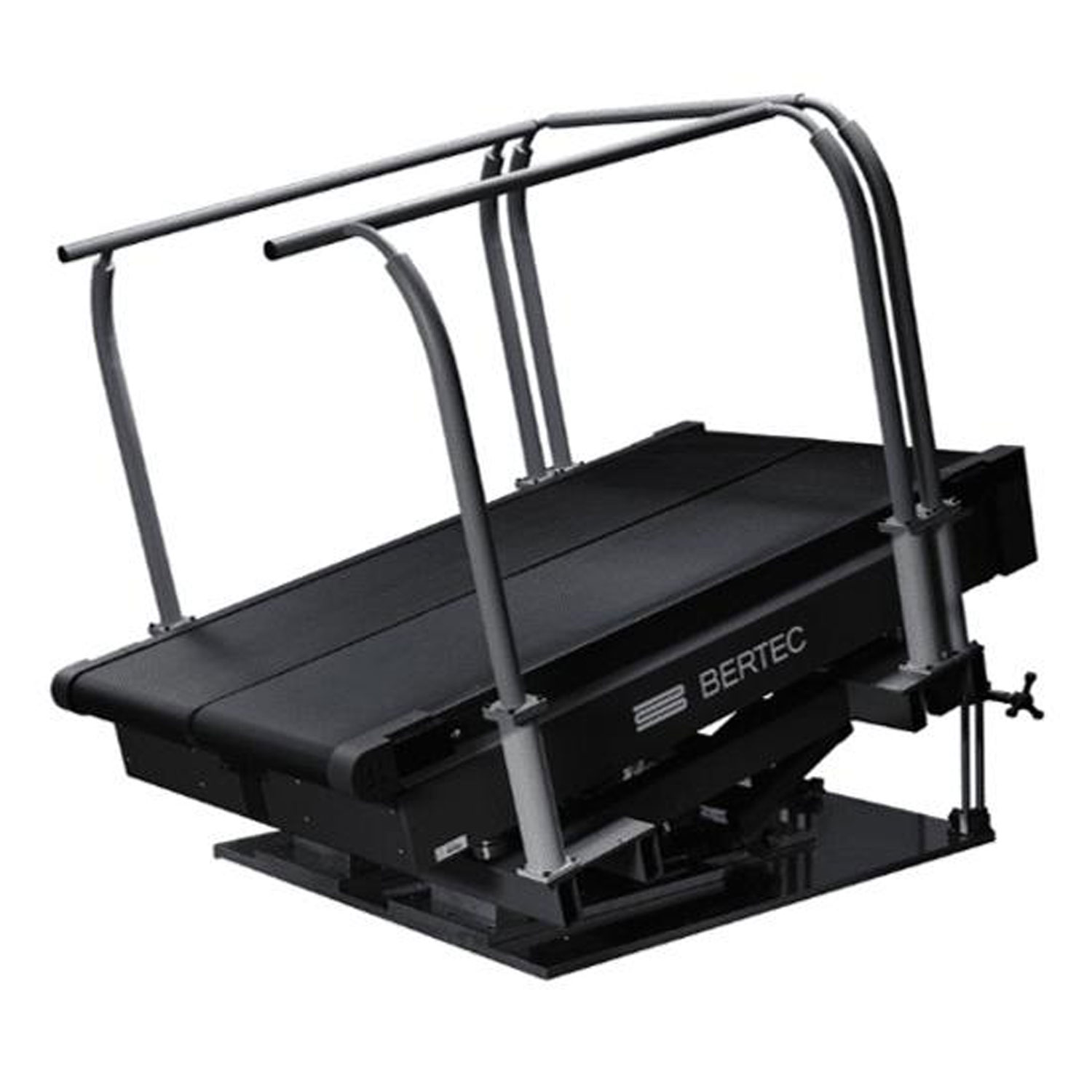

Incline: Analyze uphill and downhill movements up to 15 degrees

坡度：分析15度以内的上坡和下坡运动

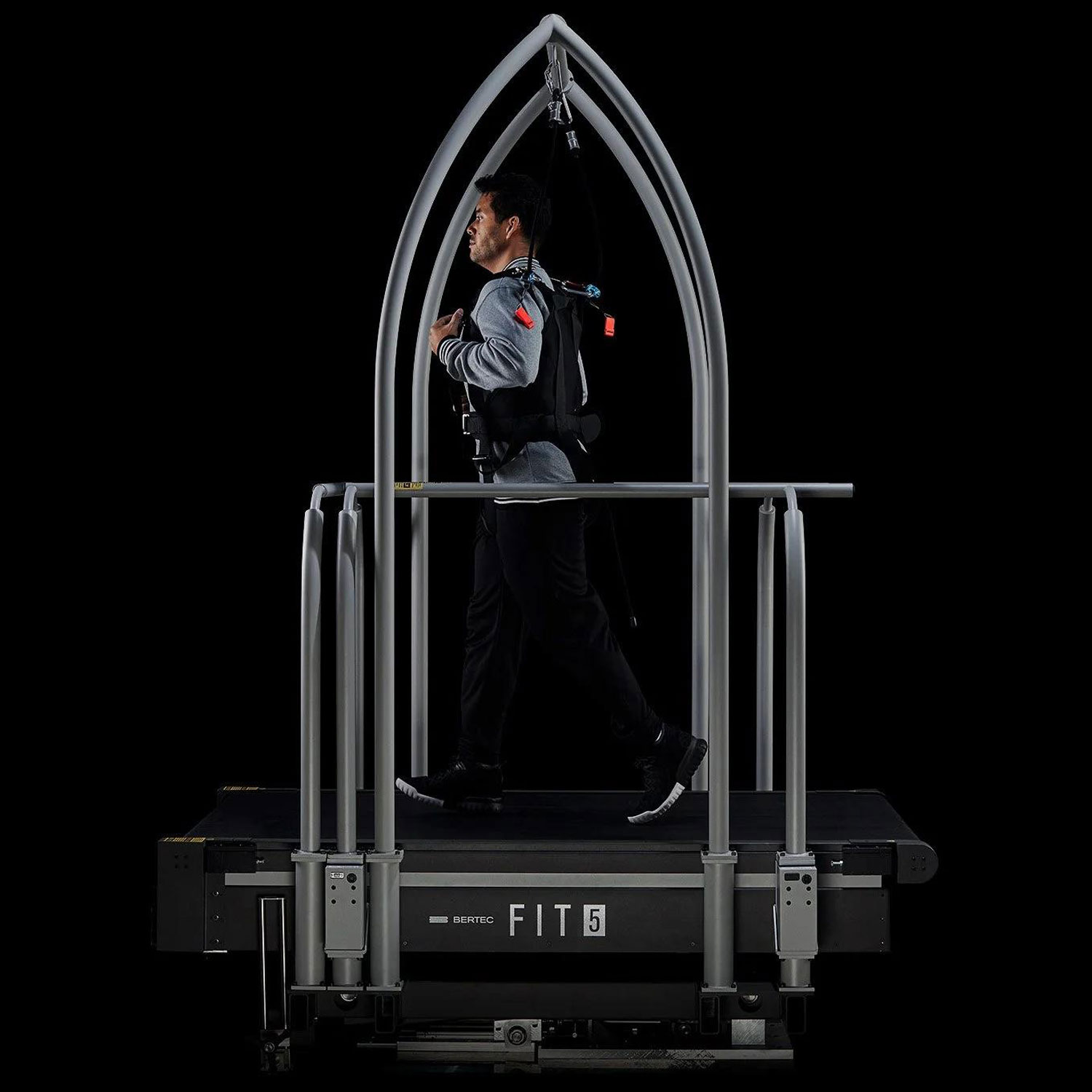

Overhead structure and harness ensures patient safety and prevents falls and off track movements. Users can be comfortable and confident during testing.

顶部结构和吊带确保患者安全，防止跌倒和偏离轨道的运动。用户在测试过程中可以感到舒适和自信。

Instrumented handrails available - each handrail outputs three components of force (Fx, Fy, Fz)

可选配测力扶手——每个扶手输出三个力分量（Fx, Fy, Fz）

Specifications规格

Unique design features result in superior dynamic characteristics and a high natural frequency making it the best suited treadmill for research

独特的设计使其具备卓越的动态特性和高固有频率，是研究用跑步机的最佳选择。

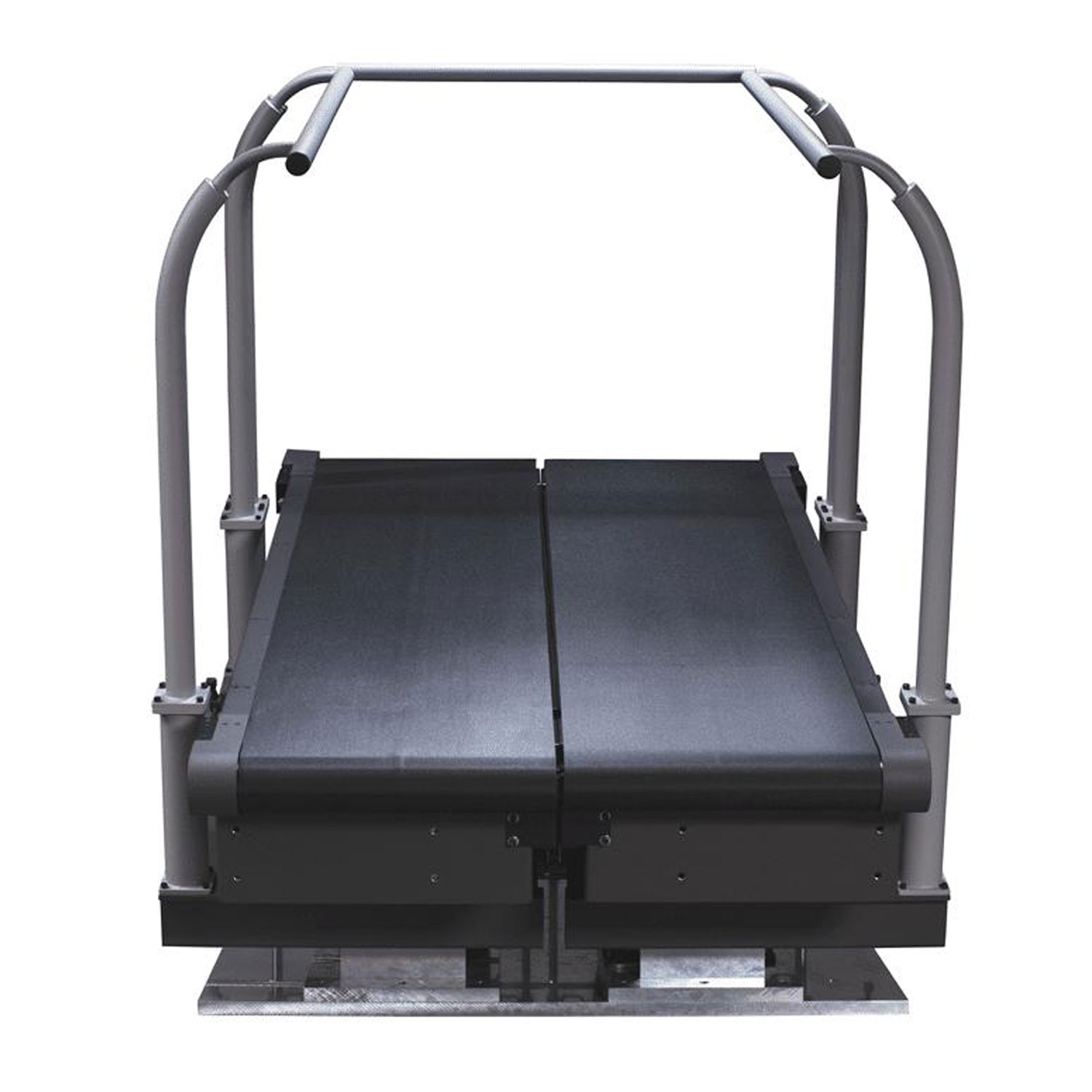

Split belt treadmill has two belts, one for each foot, which can be controlled independently in both forward and reverse with high precision at desired speed and acceleration

分道跑步机拥有两条跑带，每条对应一只脚，可独立控制正反方向，并以期望的速度和加速度进行高精度调节

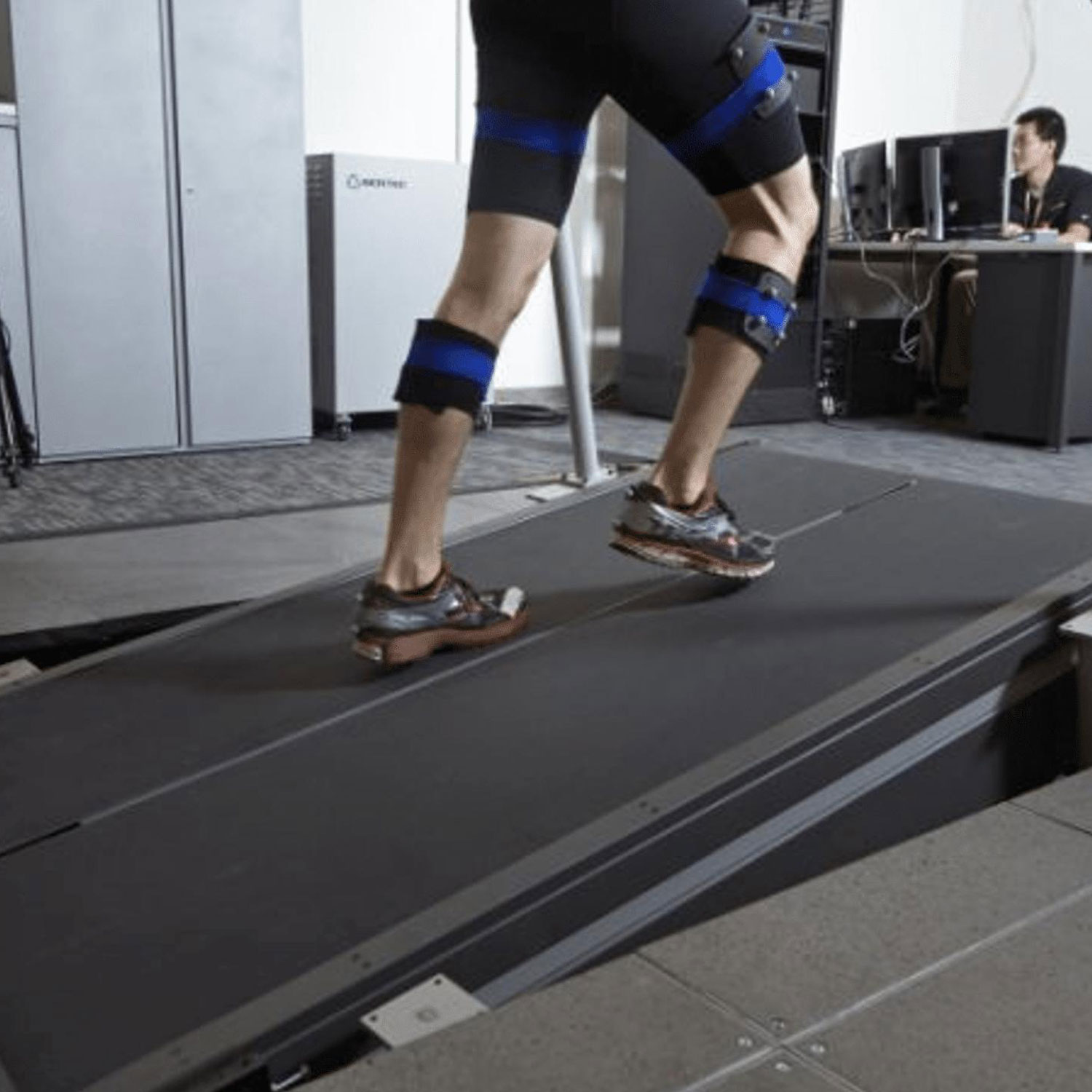

An incline feature can be added to the system for uphill analysis

系统可添加坡度功能，用于上坡分析

Independent and highly accurate 6-component load measurement from each belt (Fx, Fy, Fz, Mx, My, Mz)

每条跑带均可独立且高精度地测量6个分量的力（Fx, Fy, Fz, Mx, My, Mz）

Works with any major motion capture system

兼容任何主流动作捕捉系统

Independant low vibration drive systems isolate each half from the other and ensures minimum interference in the data signal

独立的低振动驱动系统将两侧相互隔离，确保数据信号的干扰最小化

One year standard warranty with optional maintenance packages

提供一年标准保修，可选维护套餐

The Bertec Fully Instrumented, split-running belt (dual belt) Treadmill v5 (FIT5) allows gait researchers to reduce laboratory space requirements and remove the limitations inherent in a traditional force plate walkway. The unique design features result in superior dynamic characteristics and a high natural frequency making it the preferred research-grade fully instrumented treadmill. The Bertec treadmill enables walking and running research with speeds up to 11.5 m/s and six-component force data output at 1,000 Hz.

Bertec 全功能分体式跑带（双跑带）跑步机 v5（FIT5）使步态研究人员能够减少实验室空间需求，并消除传统测力台步道固有的局限性。其独特的设计特点造就了卓越的动态特性和高固有频率，使其成为首选的研究级全功能跑步机。Bertec 跑步机支持最高达 11.5 m/s 的步行和跑步研究，并能以 1,000 Hz 的频率输出六分量力数据。

Bertec Fully Instrumented Treadmill v5 (FIT5)

Bertec 全功能测力跑台 v5 (FIT5)

The Bertec Treadmill FIT Gen 5 is a cutting-edge, fully instrumented treadmill designed to revolutionise both research and rehabilitation. Known for its dual-belt, split-running design, this biomechanical innovation offers unparalleled versatility. Therefore making it the top choice for professionals aiming to elevate their studies and therapeutic practices.

Bertec Treadmill FIT 第5代是一款尖端的全功能跑步机，旨在彻底变革研究与康复领域。凭借其双履带、分体式跑步设计，这一生物力学创新产品提供了无与伦比的多功能性。因此，它成为专业人士提升研究与治疗实践水平的首选。

Powered by robust industrial-grade servo motors, the Bertec Treadmill FIT Gen 5 ensures exceptional precision and long-term durability. The quality engineering of the Improved Drive Belt and Rollers guarantees smooth and consistent motion. Allowing for accurate and repeatable results in any setting. This treadmill is built to withstand rigorous use, making it a reliable asset for high-demand environments such as research laboratories, rehabilitation centres, and sports science facilities.

Bertec Treadmill FIT 第5代由强劲的工业级伺服电机驱动，确保了卓越的精度和长期耐用性。改进型驱动履带和滚轮的优质工程设计保证了平稳一致的运动。无论在何种环境中，都能实现准确且可重复的结果。这款跑步机能够承受高强度使用，是研究实验室、康复中心和体育科学设施等高需求环境中的可靠资产。

Precision and Versatility with Split Belt Design

精准与多功能的分带设计

The Bertec Treadmill FIT Gen 5 stands out with its unique Split Belt Treadmill Design, allowing independent control of each belt. This feature is crucial for conducting diverse gait studies and therapeutic interventions, providing researchers and clinicians with the ability to simulate various walking and running conditions. The independent belt control facilitates more detailed and precise analysis of human locomotion, making it an invaluable tool in both biomechanics research and rehabilitation therapy.

Bertec FIT Gen 5 跑台凭借其独特的分带跑台设计脱颖而出，可实现对每条跑带的独立控制。这一功能对于开展多样化的步态研究和治疗干预至关重要，为研究人员和临床医生提供了模拟各种行走和跑步条件的能力。独立的跑带控制有助于对人体运动进行更详细、更精准的分析，使其成为生物力学研究和康复治疗中不可或缺的工具。

Comprehensive Software for Advanced Research

高级研究综合软件

The Full-Featured FIT5 Software provides comprehensive data collection, real-time feedback, and advanced analytics. Effortlessly construct custom protocols using the Protocol Builder, tailoring treadmill settings and conditions to your exact research needs. Whether you’re investigating human locomotion or refining rehabilitation techniques, the Bertec Treadmill FIT Gen 5 redefines treadmill technology, empowering researchers and practitioners to unlock new insights with every step.

功能全面的FIT5软件提供全面的数据采集、实时反馈和高级分析功能。使用协议构建器轻松构建自定义协议，根据您的确切研究需求调整跑步机设置和条件。无论您是在研究人类运动还是完善康复技术，Bertec跑步机FIT Gen 5重新定义了跑步机技术，赋能研究人员和从业者在每一步中解锁新的见解。

The Bertec FIT Gen 5 was used in a study on Lower-limb kinematics and kinetics during continuously varying human locomotion.

Bertec FIT Gen 5被用于一项关于“连续变化的人类运动中下肢运动学和动力学”的研究中。
